- Espessura: 40, 60, 80, 100, 120, 140, 170, 200, 220mm
- Isolamento: QuadCoreTM Technology
- Comprimento: 1,180 mm (possibility of 1,120mm for container loading)

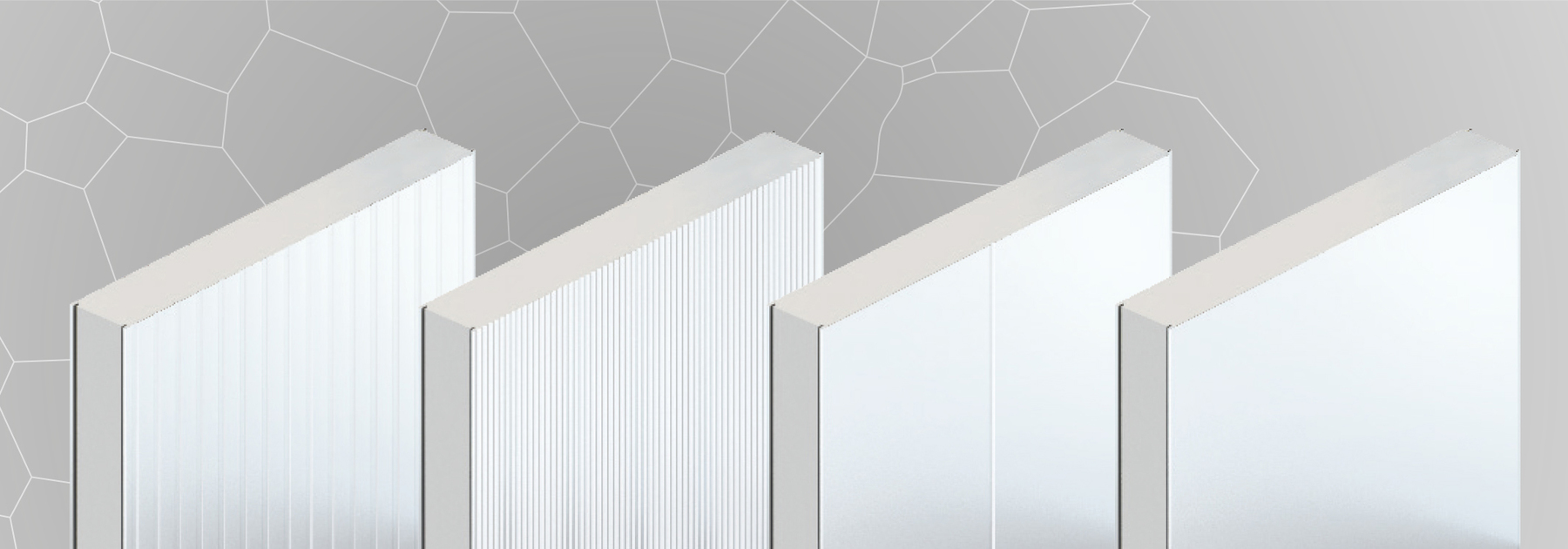

- Profile: Standard internal and external profile Ribbed. Profiles Linea, Twinlook, Ribbed or Smooth optional.
- Aplicação: wall, partition wall, roof and ceiling
- Temperatura: -40ºC to +40ºC (permanent temperature)
- Instalação: Vertical or horizontal in partition and exterior wall application
- Acabamentos : CLEANsafe 25 RAL 9002 with removeable protective film as standard. Other finishes available on request.
- Reacção ao fogo:
B-s1, d0 from 60 to 220mm panel
- Certificação:
FM Global approved 4880/4881/4882 (wall & ceiling) for Isocab Industrial Agro-Alimentaire (IND) with QuadCore
- Acustica:
60 mm, Sound Reduction (Rw (C;Ctr) [d]: 25 (-2,9 ;-3,6)
100 mm, Sound Reduction (Rw (C;Ctr) [d]: 25 (-2,9 ;-5,3). With sheets in 0,6mm the result is 27(-3,8,-6,0)
Caracteristicas:
| Espessura [mm] | 40 | 60 | 80 | 100 | 120 | 140 | 170 | 200 | 220 | |
|
QuadCore IND (Ribbed profile) |
Parede Un,S (W/m2.K) |
0.436 | 0.294 | 0.222 | 0.178 | 0.148 | 0.127 | 0.105 | 0.089 | 0.081 |
|
Parede R (m2.K/W) |
2.294 | 3.401 | 4.505 | 5.618 | 6.757 | 7.874 | 9.524 | 11.236 | 12.346 | |
|
Partição Un,S (W/m2.K) |
0.420 | 0.287 | 0.217 | 0.175 | 0.147 | 0.126 | 0.104 | 0.089 | 0.081 | |
|
Partição R (m2.K/W) |
2.381 | 3.484 | 4.608 | 5.714 | 6.803 | 7.937 | 9.615 | 11.236 | 12.346 | |
|
Teto ventilado Un,S (W/m2.K) |
0.441 | 0.297 | 0.223 | 0.179 | 0.149 | 0.128 | 0.105 | 0.090 | 0.082 | |
|
Teto ventilado R (m2.K/W) |
2.268 | 3.367 | 4.484 | 5.587 | 6.711 | 7.813 | 9.524 | 11.111 | 12.195 | |
|
QuadCore IND (smooth profile)
|
Parede Un,S (W/m2.K) |
0.428 | 0.290 | 0.219 | 0.176 | 0.147 | 0.127 | 0.105 | 0.089 | 0.081 |
|
Parede R (m2.K/W) |
2.336 | 3.448 | 4.566 | 5.682 | 6.803 | 7.874 | 9.524 | 1.236 | 12.346 | |
|
Partição Un,S (W/m2.K) |
0.412 | 0.283 | 0.215 | 0.174 | 0.146 | 0.125 | 0.104 | 0.088 | 0.080 | |
|
Partição R (m2.K/W) |
2.427 | 3.534 | 4.651 | 5.747 | 3.849 | 8.000 | 9.615 | 11.364 | 12.500 | |
|
Teto ventilado Un,S (W/m2.K) |
0.434 | 0.293 | 0.221 | 0.177 | 0.148 | 0.127 | 0.105 | 0.089 | 0.081 | |
|
Teto ventilado R (m2.K/W) |
2.304 | 3.413 | 4.525 | 5.650 | 6.757 | 7.874 | 9.524 | 11.236 | 12.346 | |
| QuadCore IND (All profiles) |
Peso (40kg/m3) valor nominal |
9.920 | 10.720 | 11.520 | 12.320 | 13.120 | 13.920 | 15.120 | 16.320 | 17.120 |
Video: https://youtu.be/8Fuhzivhw80
